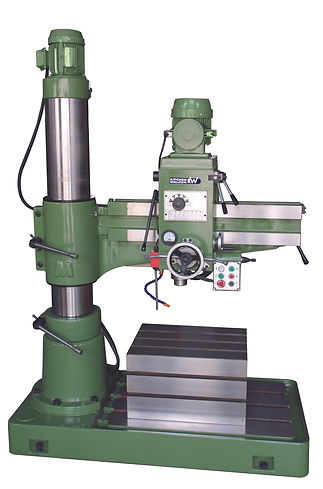

Radial Drilling Machine G38 x 900
STANDARD ACCESSORIES:
• Work Light • Coolant System • Box Work Table • Fixing Bolts • Reducing Sleeves • D.C. Brake • Manual and Parts List
FEATURES:
• D.C. Injection Brake • ’T’ Slotted Box Table • Coolant System • Low-Volt Work Light • Ground and Hardened Guideways
• Arm Elevation via Screw and Motor • Precision Ground Base and Box Table
DC Injection Brake for instant braking in case of emergency
|
CODE |
PARAMETER |
CODE |
PARAMETER |
|
A |
900 |
I |
2100 |
|
B |
250 |
L |
260 |
|
C |
650 |
M |
1500 |
|
D |
1120 |
N |
1443 |
|
E |
540 |
O |
170 |
|
F |
580 |
P |
350 |
|
G |
210 |
Q |
600 |
|
H |
2290 |
φ |
220 |
|
Model |
G38x900 |
|
Max Drilling Diameter - Steel |
38mm |
|
Max Drilling Diameter - Iron |
48mm |
|
Max Tapping Capacity - Steel |
M16 |
|
Spindle Travel |
210mm |
|
Spindle Taper |
MT4 |
|
Number of Spindle Speeds |
6 |
|
Speed Range |
75-1250rpm |
|
Number of Spindle Feeds |
3 |
|
Range of Feeds |
0.05-0.16mm/rev |
|
Column Diameter |
220mm |
|
Min Distance Spindle Axis to Column |
250mm |
|
Max Distance Spindle Axis to Column |
900mm |
|
Horizontal Travel of Spindle Head |
650mm |
|
Min Distance Base to Spindle Max Distance Base to Spindle |
330mm 1120mm |
|
Overall Height of Column |
2100mm |
|
Dimensions of Base |
1500x700mm |
|
Box Table Size |
600x450x350mm |
|
Spindle Motor |
1.5Kw (2hp) |
|
Swing Arm Motor |
0.19Kw (0.25hp) |
|
Coolant Pump Motor |
0.13Kw (0.17hp) |
|
Net Weight |
1250kgs |
|
Overall Dimensions |
1600x750x2200mm |
